Bambu H2C Laser Combo - 10W

Product# PF003-N+SA007-JP+SL001-JP

Key Features:

Print up to 7 different materials in a single run — no nozzle purging required
Supports up to 24 materials using parallel AMS units
8-second induction heating for rapid tool readiness
Dedicated hotends optimized for specific filament types
10W laser and cutting module included

エキスパートに相談

弊社の3Dプリンターエキスパートに相談する

sales@brule.co.jp 03-6803-0563

Dont't Forget an Extended Warranty!

なし
2 Year $100.00
3 Year $100.00

リードタイムはスタッフまでお問い合わせください。

新発売
保証込み

￥495,800

個数

イメージギャラリーの最後に移動する

新商品!

イメージギャラリーの最初に移動する

弊社略歴

Bruleは、他社に先駆けて2012年から３Dプリンター販売を開始いたしました。その後も、市場評価の高い卓上型プリンタを厳選して、販売からサポートまで社内で手掛けているのが特徴です。経験豊かな技術者が社内に数多く在籍しております。

弊社概要

Bruleは、3Dプリンターのサプライヤーであり、産業用および、卓上型の3Dプリントそれぞれに精通しています。弊社は、最先端の次世代金属3Dプリンター、SLS、超高速産業用3Dプリンターも取り扱っております。

顧客満足

厳選されたセレクション
迅速な配送

商品概要

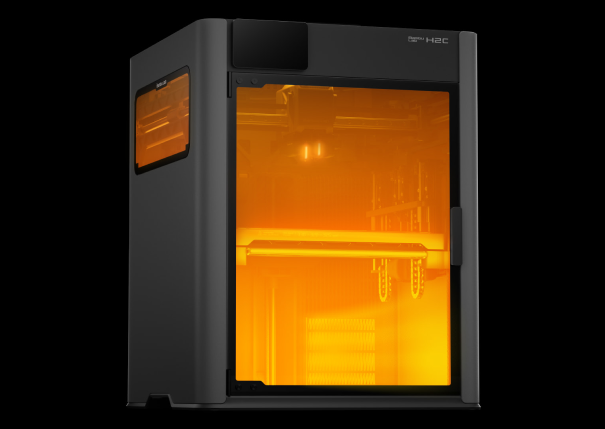

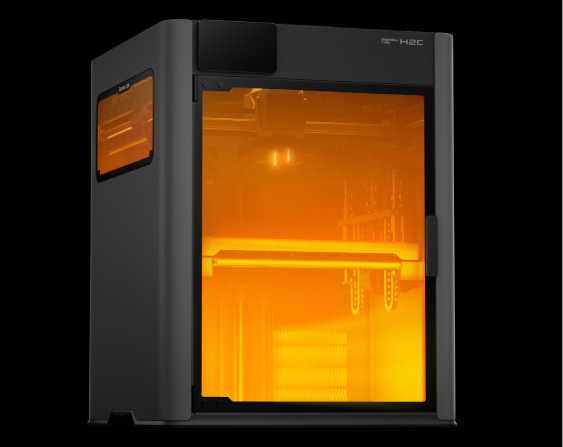

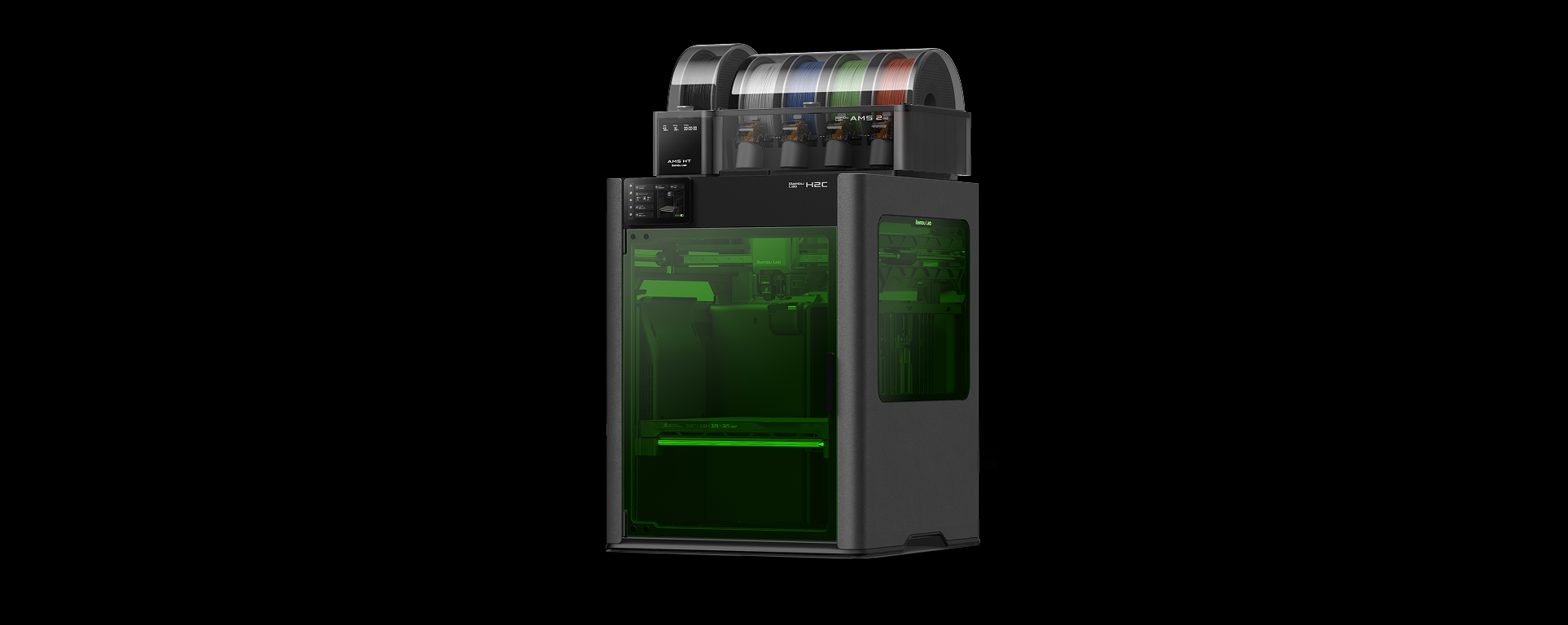

Bambu Lab H2C Laser Combo - 10W

Uncompromising Multi-Material.

Revolutionize How You Print Your Projects

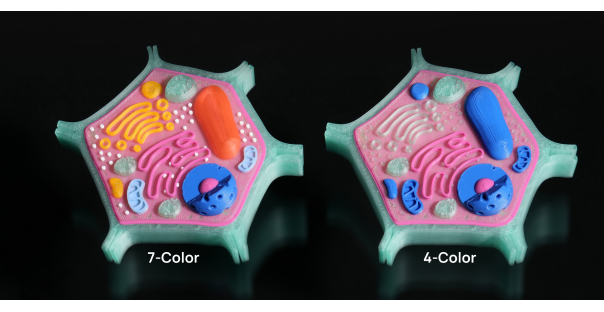

Paint No More, Print 7 Colors in One-Piece.

Showcase Models

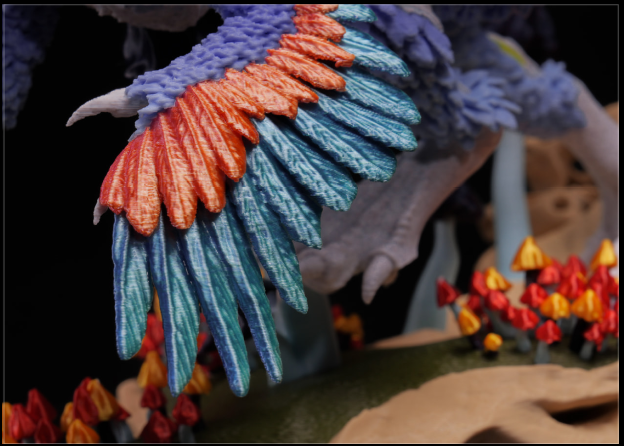

Model 1

Purge Saving Multi-Color Printing

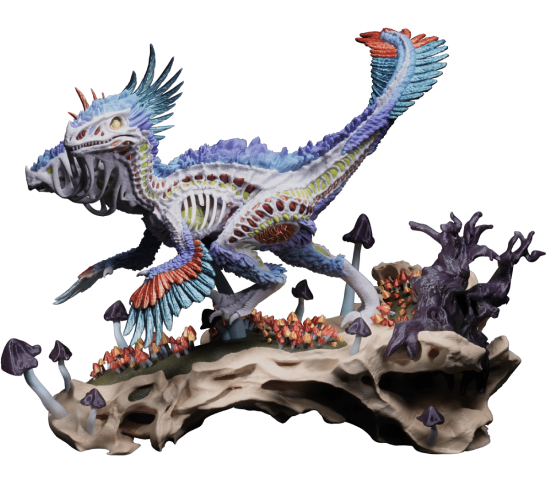

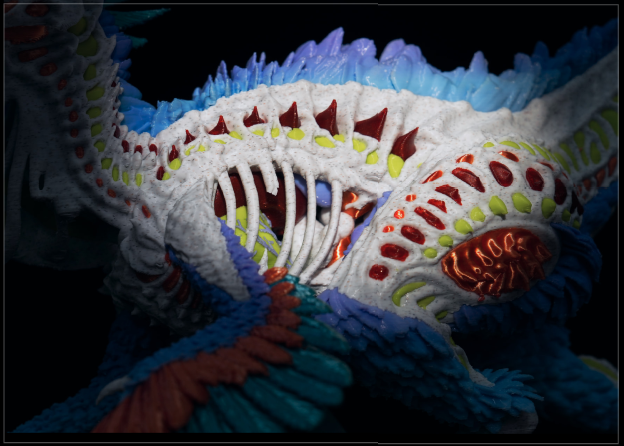

Model Name: Geminaraptor | Creator: @FireBird(Sophie)

Bring Your Ideas to Life in Full Color with Minimal Waste.

Painting intricate models is a thing of the past — the H2C brings your designs to life with six-color printing and a versatile seventh nozzle for support or an additional color. This whole thing is printed in 2 parts. The main raptor is 6-color and the base is another 6-color.

Model 2

Purge Saving Multi-Color Printing

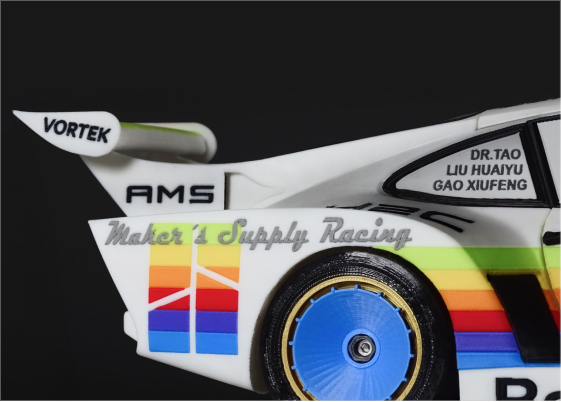

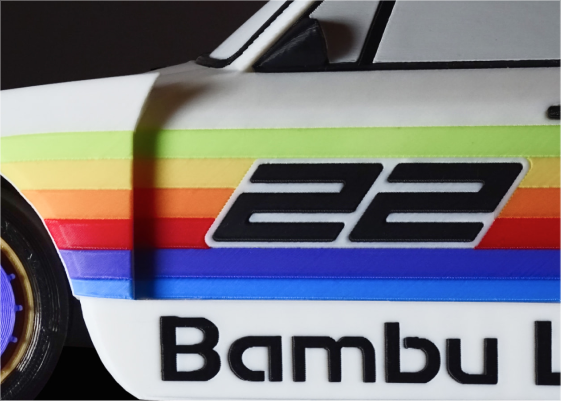

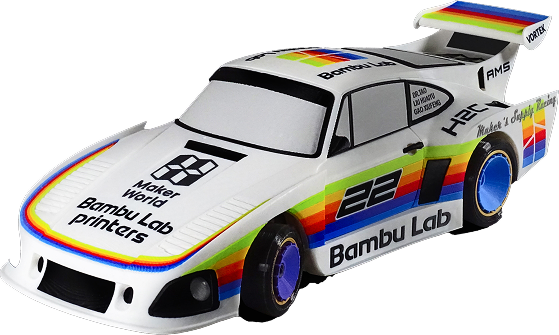

Model Name: Bambu Lab Racer | Creator: @Mr.Rod  

7 Colors. One Print. No Paint.

A race car with racing stripes? Yes, you can print it straight out! Forget the hassle of painting or wasting tons of filament.

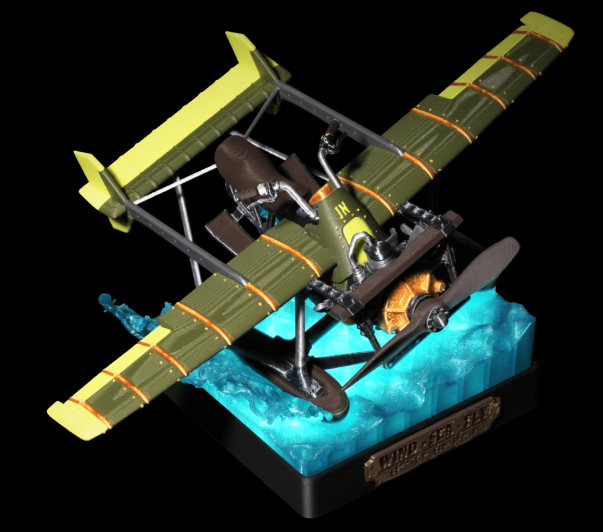

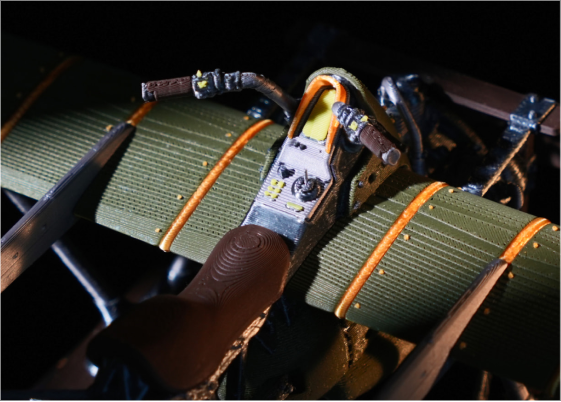

Model 3

Purge Saving Multi-Color Printing

Model Name: Blériot Rider - XI | Creator: @CrazyJN

Print Durable Joints — Built Right Into the Parts.

An anime-style fighter plane in full color — no paintbrushes, no glue, no fuss. Simply load your filaments and print a flawless one-piece model in no time.

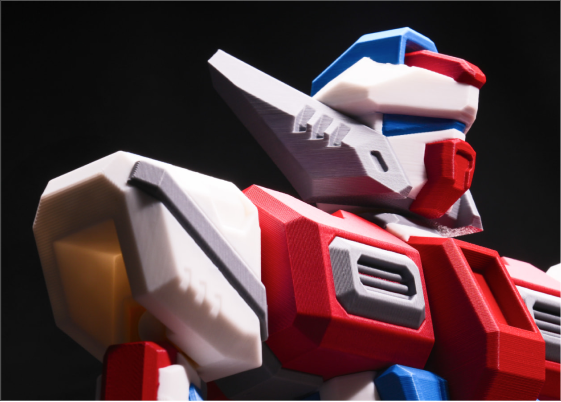

Model 4

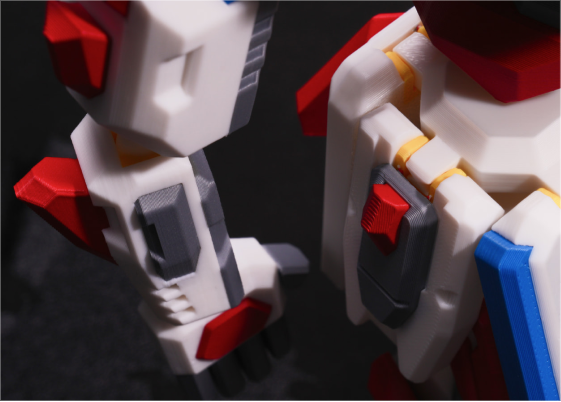

Integrated TPU Joints for Multi-Color Parts

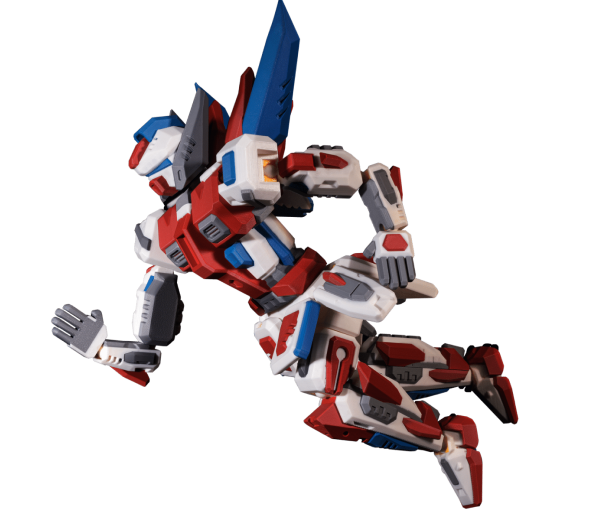

Model Name: Heavy Second Core Mecha |Creator: @Kit Crafters

No More Assembly — Print Multi-Material Parts in One Piece.

Print durable TPU ball joints for your robot models — flexible, long-lasting, and built for endless motion.

Materials:

TPU for AMS — Joints
PLA Matte — Main Body

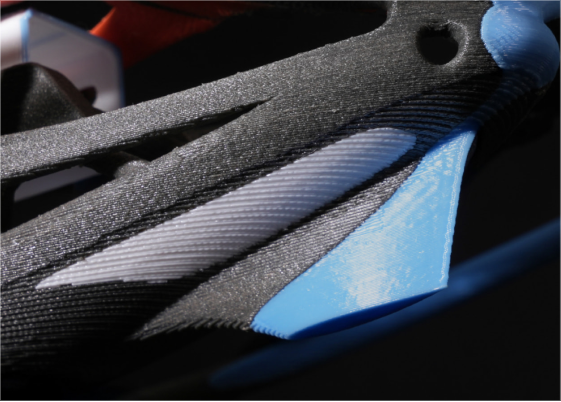

Model 5

Integrated TPU Joints for Multi-Color Parts

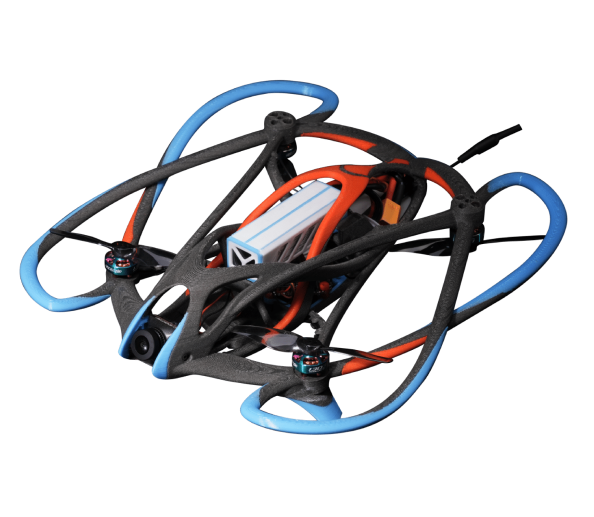

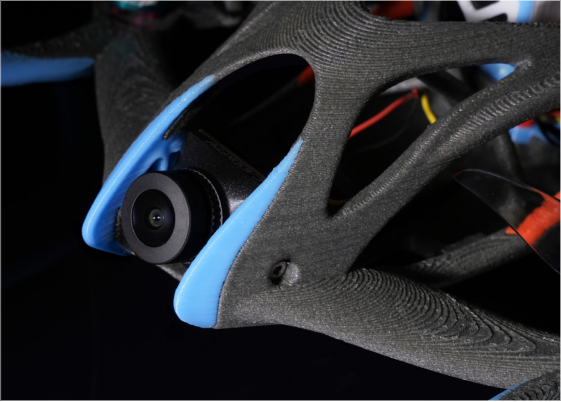

Model Name: Aero Mobius Drone Frame |Creator: @极尘悦

Bring Color to Flexible Prints.

With the H2C, you can print up to seven different materials in a single run — no nozzle purging required. Combine multiple material properties in one seamless structure and take integrated design to a whole new level.

Materials:

PA6-GF — Structural rigidity
TPU for AMS — Impact absorbing
PC FR — Fire Retardant

Vortek Hotend Change System

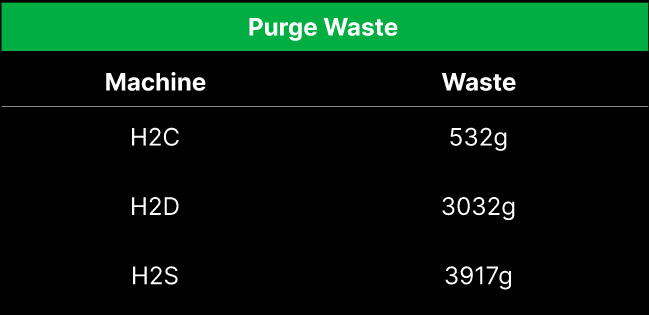

Multi-Material Printing with Minimal Purge Waste

Traditional single-nozzle multi-material printing requires purging. Vortek swaps entire hotends, enabling faster, cleaner printing with minimal waste.

Fully Automatic Filament Change

Works seamlessly with AMS to automate filament loading — no manual loading required.

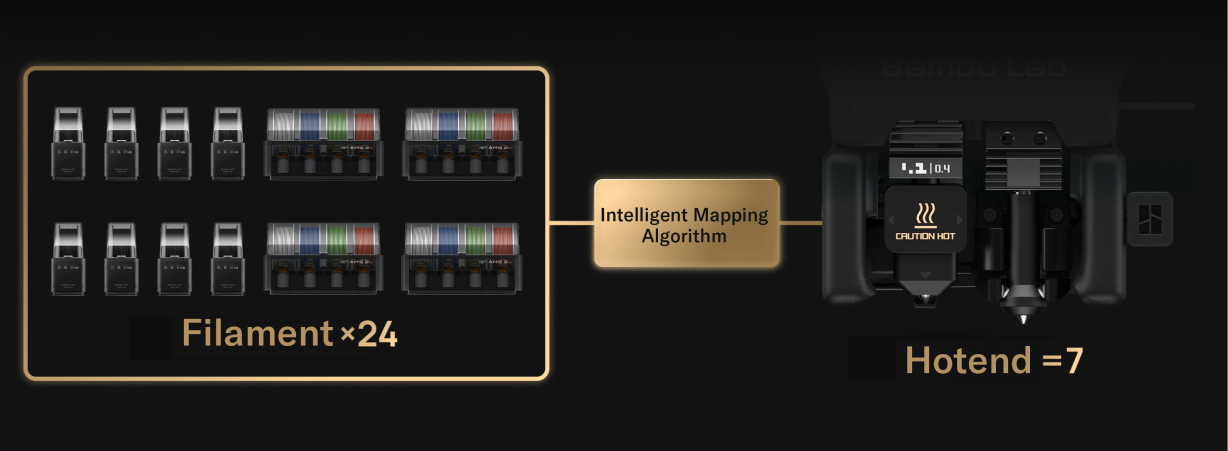

Always Delivering the Most Efficient Combination

Stores filament info inside the hot-end. When using 7+ materials, it auto-optimizes combinations to reduce purge waste.

Why Vortek?

Small Form Factor, More Filaments 

Swapping only the hot-end allows up to six hotends without reducing build volume.

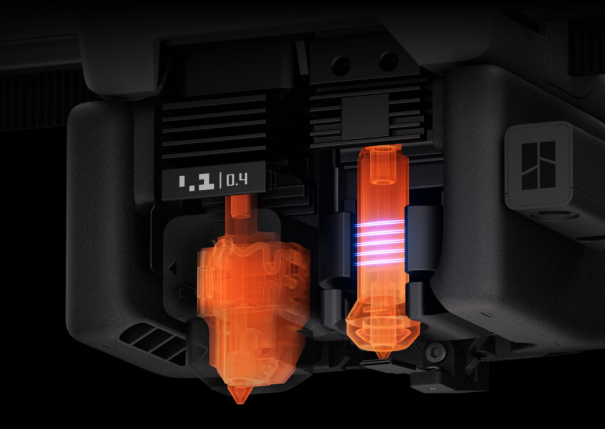

8-Second Induction Heating

Nozzle heats in 8 seconds, reducing swap time.

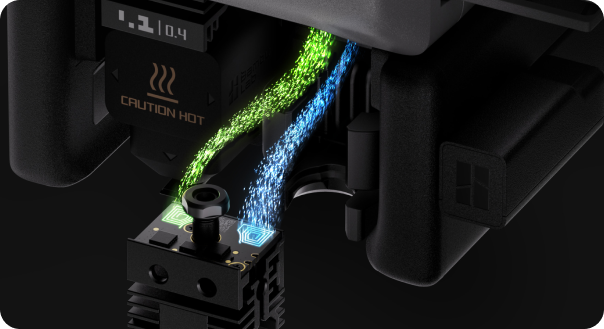

Contactless Design For Reliability

No metal pins — stable contactless connection for accuracy.

Colors Are No Longer Limited

Supports up to 24 materials via parallel AMS units.

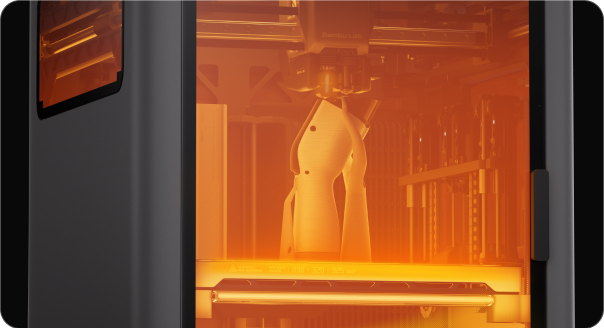

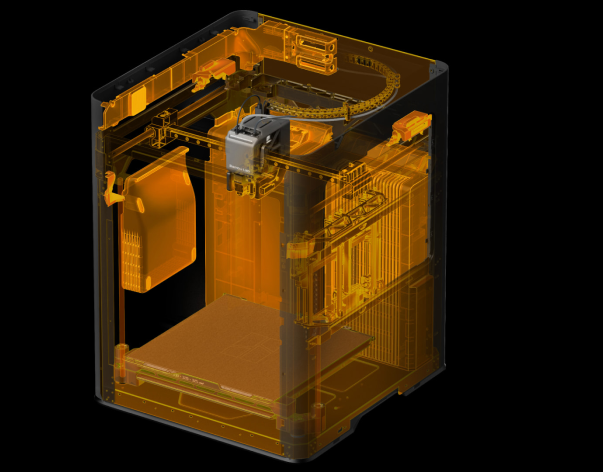

Enclosed for High-Performance Printing

Stable chamber temp + air filtration.

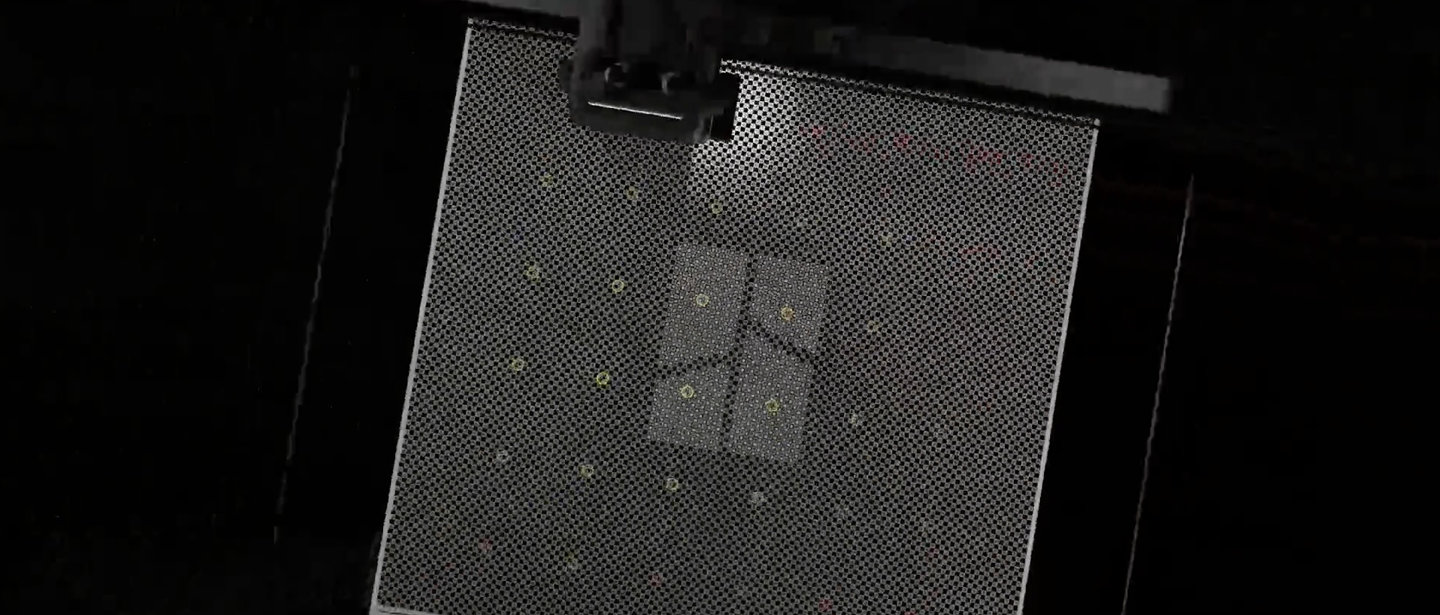

Fully Automatic Nozzle Offset Calibration

Automatic calibration to 25 microns.

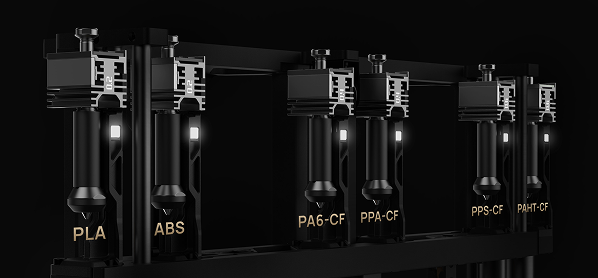

Dedicated Hotends for Specific Filaments

Assign specific hotends for engineering-grade filaments.

A Serious Production Powerhouse

Superior Print Quality

70% More Extrusion Force & Real-Time Error Detection

PMSM servo extruder with 10 kg force; 20 kHz sampling for grind/clog detection.

50µm Ultra-Fine Motion Accuracy*

Vision Encoder ensures <50 μm accuracy with automatic compensation.

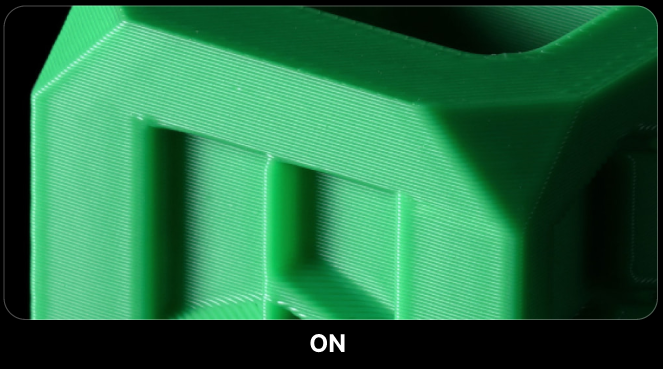

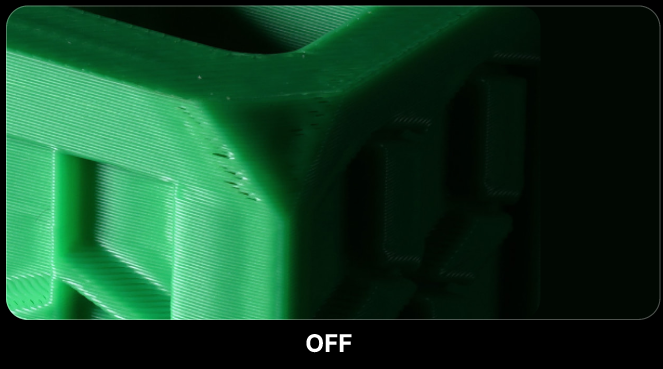

Smooth Surface, Sharp Edges

PA calibration per filament via servo + eddy current sensors.

Engineering Materials Ready

Unleash The Full Potential of High-Performance Materials

All 7 nozzles reach 350°C.

65°C Active Heated Chamber

Reduces warping and improves adhesion.

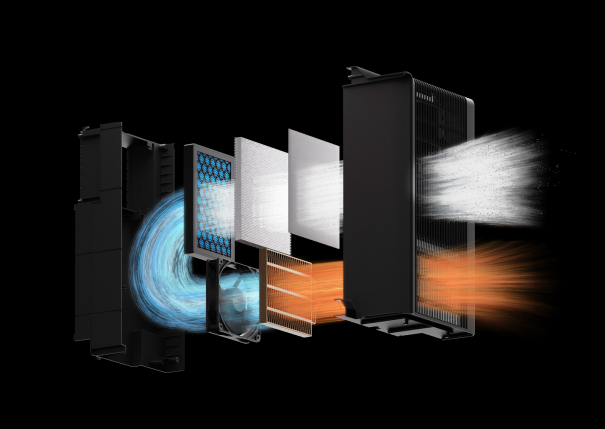

Best-In-Class Air Filtration

G3 + H12 HEPA + activated carbon system.

AI-Powered Simplicity

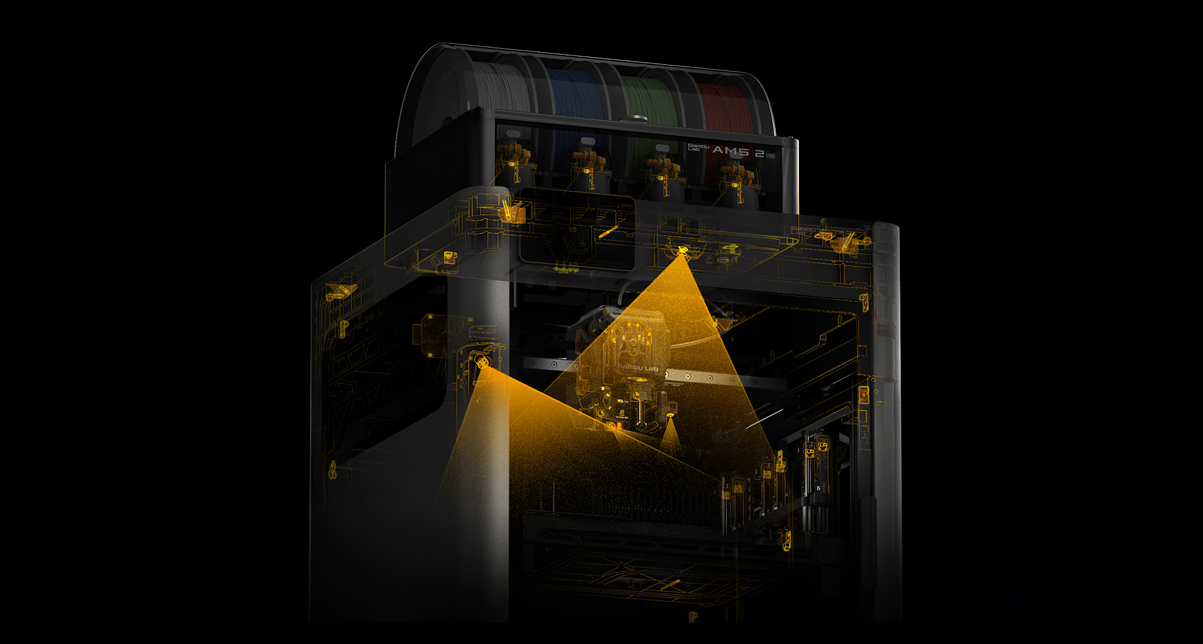

Comprehensive Print Monitoring

59 sensors + quad cameras + neural diagnostics.

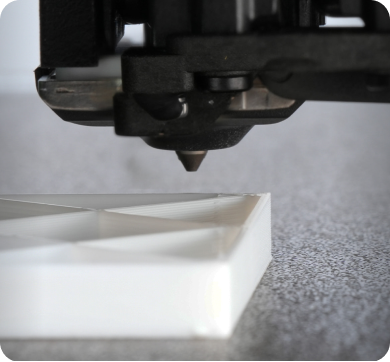

Nozzle Camera

Macro lens AI camera for extrusion monitoring.

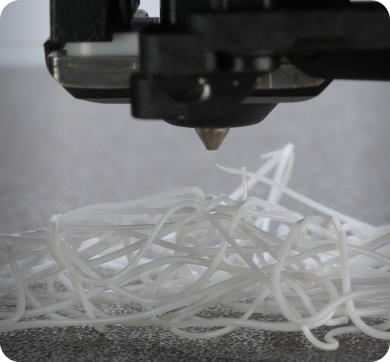

Spaghetti

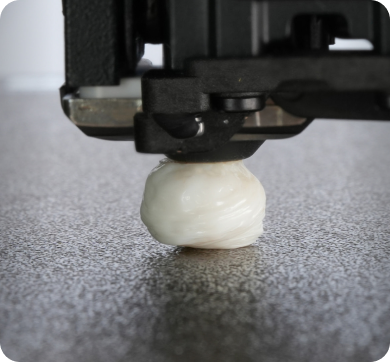

Nozzle Clumping

Air Printing

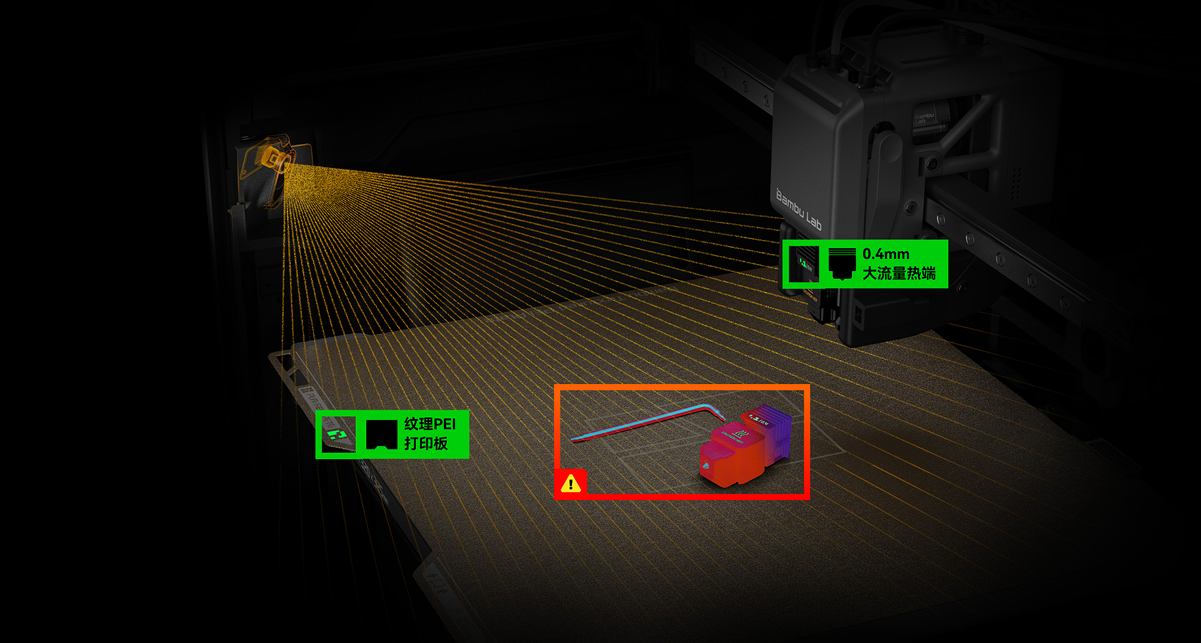

Pre-Flight Checklist

Automatic debris scan + slicer setting verification.

Safety, Checked!

Flexible Network Security & Connectivity

Entire chamber made from UL94 V-0 flame-retardant materials.

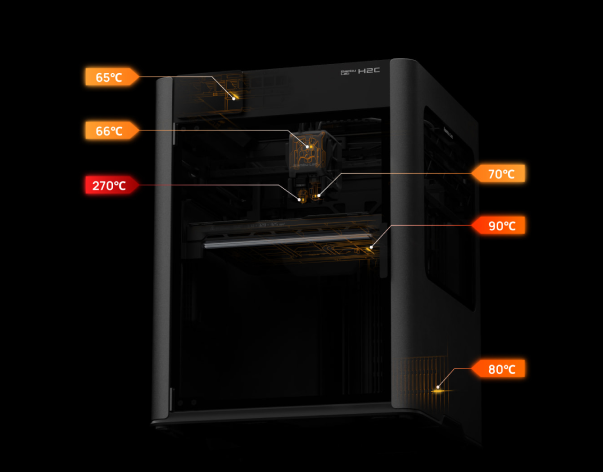

Multi-Sensor Closed-Loop Temperature Control

Real-time thermal management from multiple sensors.

Best-In-Class Air Filtration

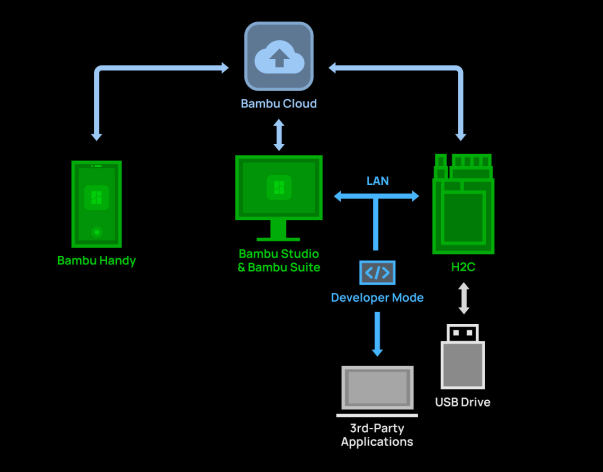

Cloud or fully offline operation; Developer Mode with MQTT.

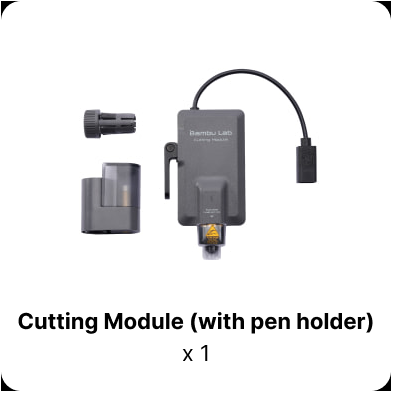

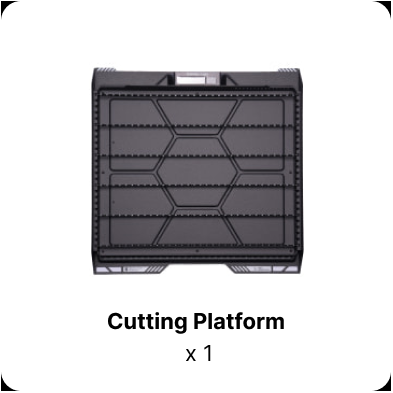

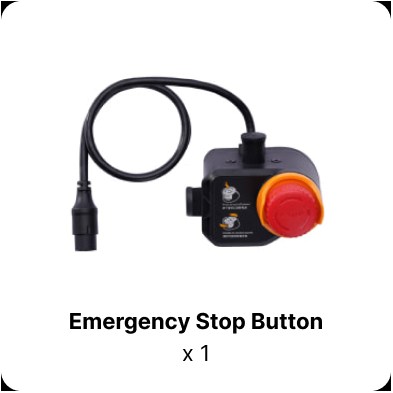

What's in the box

H2C Combo & Upgrade FAQ

What hotends are included in the H2C Combo? If I want full hotend-swap capability, what additional hotends do I need? How should the AMS be connected?
The H2C AMS Combo / Laser Full Combo includes 8 hotends and 1 AMS 2 Pro:
Right Hotends (Induction Hotends):

4 × 0.4 mm hardened steel induction hotends (1 pre-installed, 3 in accessory box)
1 × 0.2 mm induction hotend (accessory box)
1 × 0.6 mm induction hotend (accessory box)

Left Hotends (Standard Hotends):
2 × 0.4 mm hardened steel standard hotends (1 pre-installed, 1 in accessory box)

Notes:
Firmware currently supports mixed flow-rate printing (standard flow + high flow).
Mixing different nozzle sizes during printing is not yet supported.

Recommended for full Vortek 6-hotend experience:

H2C Ultimate Set includes:

3 × 0.4 mm induction hotends
1 × 0.2 mm left hotend
1 × 0.6 mm left hotend
1 × AMS 2 Pro
1 × AMS HT

AMS Connection Options:
H2C Combo: 1 × AMS 2 Pro supplies 4 induction hotends.
Ultimate Setup: Add 1 × AMS 2 Pro + 1 × AMS HT
Two AMS 2 Pro feed the right hotends
AMS HT feeds the left hotends

Multi-AMS Setup: Add 2 × AMS HT
All three AMS feed the right-side hotends

Future Setup (2026): Filament Track Switch Module will allow full 7-hotend support with only 2 AMS units, enabling free filament switching between left & right paths.
Does the H2C support laser and blade-cutting functions?

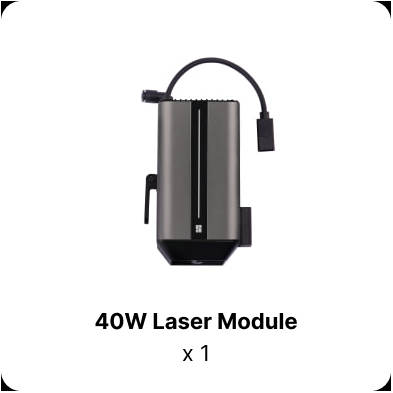

- H2C Laser Edition: Supports 10W and 40W laser modules and is compatible with the blade-cutting module.
- Non-laser H2C: Supports blade-cutting by default; can be upgraded for laser functionality via an upgrade kit.
Can H2S or H2D be upgraded to H2C?
- Both H2D and H2S can be upgraded to H2C by installing the Vortek Upgrade Kit.
- The upgrade is complex and time-consuming; purchasing H2C directly is recommended for a full Vortek experience.
- Upgrading later incurs additional cost.
- Availability: Early 2026.
Can H2C dual-nozzle printing use different nozzle sizes simultaneously?
- Not currently. Firmware does not support mixing nozzle sizes.
- Supported: Mixed nozzle types of the same size (e.g., 0.4 mm standard flow + 0.4 mm high flow).

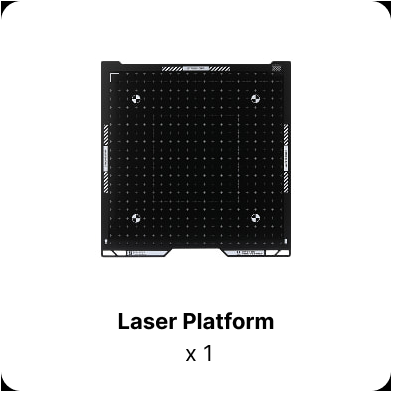

Are H2C buildplates, calibration plates, laser platform, and blade-cutting mats compatible with H2D?
- Buildplates: Not interchangeable (H2C print bed is slightly smaller).
- Vision calibration plates, laser platform, and blade-cutting mats: Fully compatible across all H2 series models.
