Matter and Form THREE
Product# MFSTHREE
Key Features:
- 33-micron accuracy
- Built-in software and processing
- Open API programming
- Full spectrum ChromaSpec™ structured light for multirange scanning
Dont't Forget an Extended Warranty!
利用可能
- 新発売
- 保証込み
弊社略歴
Bruleは、他社に先駆けて2012年から３Dプリンター販売を開始いたしました。その後も、市場評価の高い卓上型プリンタを厳選して、販売からサポートまで社内で手掛けているのが特徴です。経験豊かな技術者が社内に数多く在籍しております。
弊社概要
Bruleは、3Dプリンターのサプライヤーであり、産業用および、卓上型の3Dプリントそれぞれに精通しています。弊社は、最先端の次世代金属3Dプリンター、SLS、超高速産業用3Dプリンターも取り扱っております。
顧客満足
- 厳選されたセレクション
- 迅速な配送
商品概要

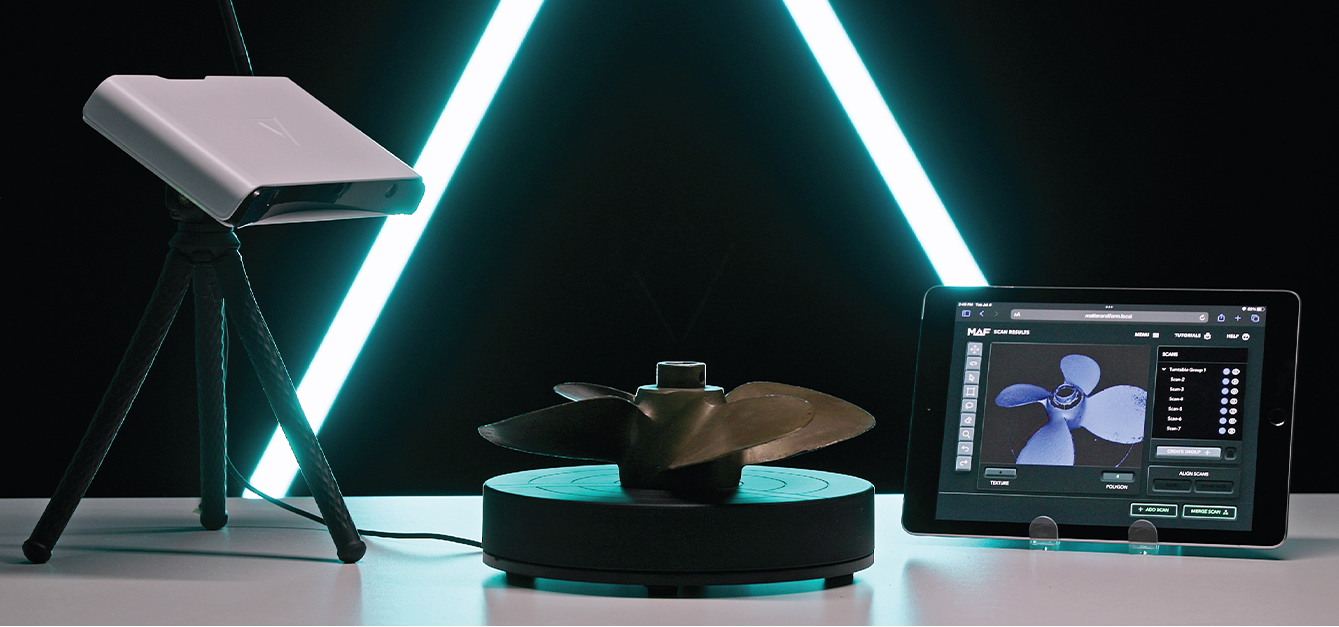

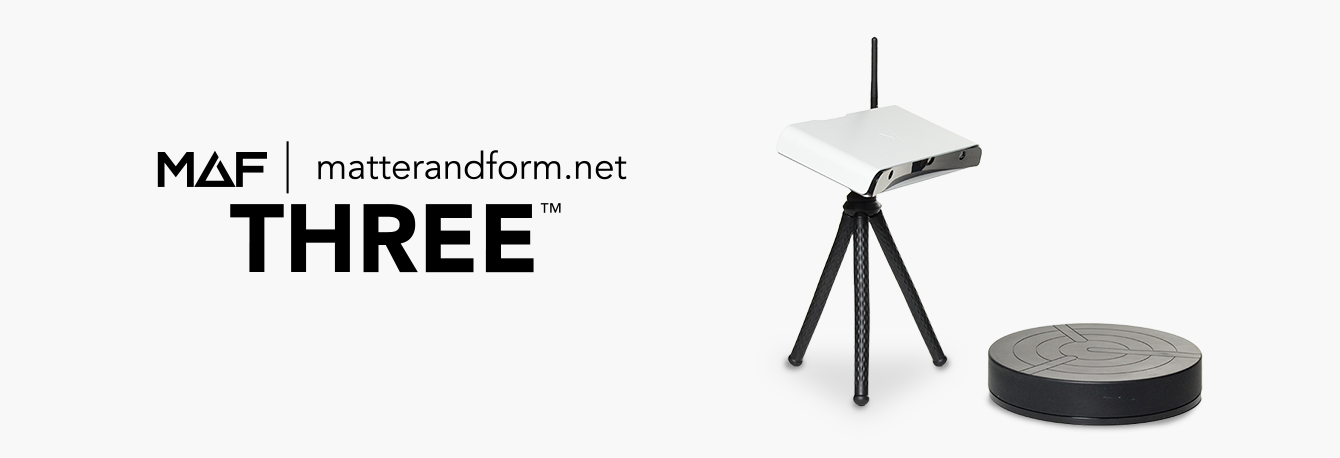

Matter and Form THREE 3D Scanner
The Most Capable 3D Scanner Ever Made.
Scan a wide range of object sizes and capture any color with metrology-level accuracy. Introducing: THREE™
There is nothing else like THREE™
With an astonishing range of capabilities and features that don't exist elsewhere, THREE will be an essential part of user's workflow.

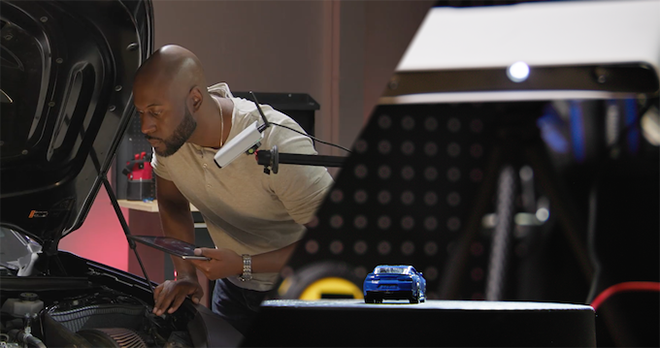

Scan Any Size
Scan anything, from a real car engine to a toy car miniature. THREE's flexible system means users only need one device for a wide range of projects.
Scan Any Color
THREE's unique ChromaSpec™ technology uses the full spectrum of visible light to perfectly capture geometry from objects of any color.

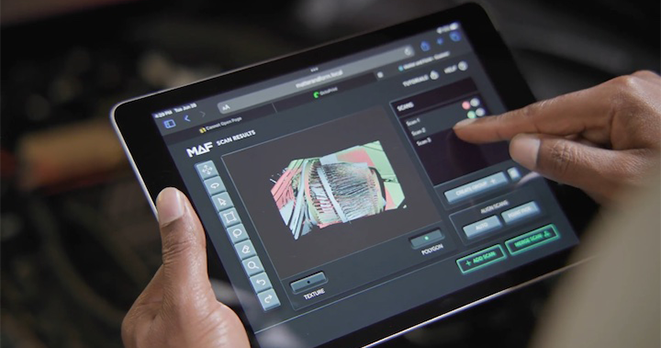

Use Any Computer
THREE is the world's first 3D scanner with fully onboard software that runs in any modern web browser and on any operating system. Use THREE with a computer, tablet or iPad.

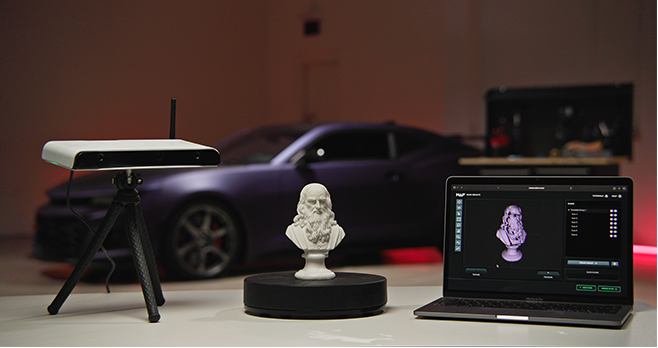

For Any Application
THREE has a full API for programmers with ready-to-go open source projects.
A Complete 3D Scanning Solution
- Engineering & Metrology
- 3D Printing
- Archiving & Research
- Automation Systems
- CTE, University & K12
- Education
- Art & Design
- E-Commerce
- Edge Computing

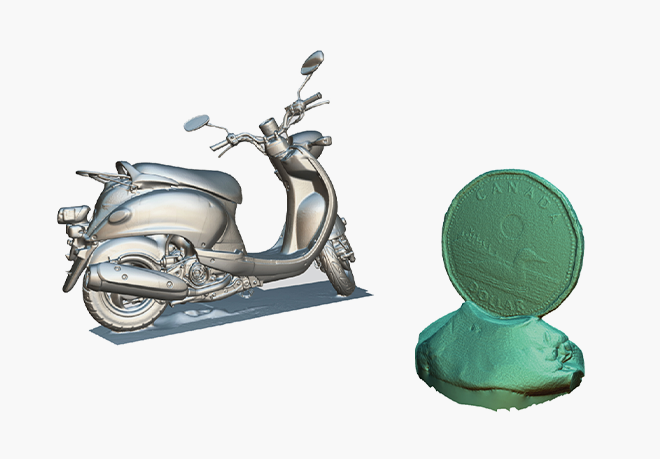

Sample Scans

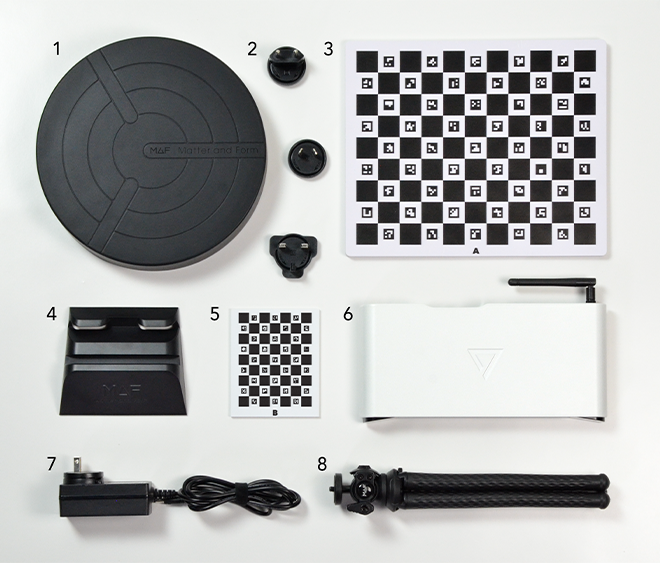

What’s in the Box
- Wired Turntable, with silicone top. Capable of turning up to 20 lbs
- International power adapter plugs
- Large Calibration Card
- Calibration Card Holder
- Small Calibration Card
- THREE Scanner with Wireless antenna
- 12V 5A power brick with 10 foot cable
- Premium mini tripod with flexible legs
FAQ
How does THREE work?
THREE features a built-in CPU and GPU, 13MP Sony optical sensors, a state of the art DLP projector, and WIFI/ethernet connectivity. With extensive research and development, we created software that fully exploits the hardware to capture and intelligently process 37 micron resolution scans in about 20 seconds.
How is this different from other 3D scanners?
Other scanners require a massively powerful and expensive computer. Your THREE works with practically any computer, tablet or chromebook. Other scanners require you to hold them steady, at just the right place to avoid losing tracking, while watching a computer screen to see if it’s actually working. THREE features automatic and user-directed scan alignment. Using your included tripod, simply point the scanner at what you want to capture. The software will automatically align your scans on completion.
How can this work without a powerful computer?
Our development team built the software from the ground up. It’s beautiful, simple, powerful, and incredibly efficient with an on board CPU and GPU. Accessing your THREE is done through your web browser, so any modern device can run it.
What is the scan speed, resolution, scan distance?
Capture time: 4 seconds.
Processing time: 10 seconds.
Projector frame rate: 60 fps.
Scan object distance to camera: 220 mm to 700 mm (8.66 inches to 27.56 inches).
Resolution: 37 microns @ 220 mm, 65 microns @ 400 mm, 114 microns @ 700mm.
Z-accuracy: 33 microns @ 220 mm, 150 microns @ 400 mm, 400 microns @ 700 mm.
Minimum capturable feature size: 0.2 mm (0.0078 in).
Maximum capturable object size: theoretically unlimited, but practically limited to 16 GB storage space.
Isn’t blue light better than white light? How does ChromaSpec work?
Contrary to popular belief, blue light doesn’t automagically deliver higher-quality scans. Blue light scanners struggle to capture certain colors, so scanning spray is almost always required. THREE’s breakthrough ChromaSpec algorithm uses the full color spectrum to detect and process different-colored areas of the object. With THREE, most of the time you won’t need to worry about scan sprays. Instead of messing around, trying to get the settings just right, THREE lets you quickly get the scan you need, and keep your project moving forward.
How is THREE a vision development tool?
THREE is the easiest 3D scanner you’ll ever use, with built-in software that lets you quickly set up and capture the scan you need. But it can do more as well. It has a full API and on-board processing, so if you want to get into some really cool vision system hacking, it’s ready to go. A Github repository of example projects will be available that you can run and modify. No other 3D scanner has this ability.
