Formlabs Rigid 4000 Resin v1 -1L
Product# RS-C2-RGWH-01
Reinforced with glass to offer very high stiffness and polished finish, highly resistant to deformation over time and great for printing thin walls and features. Requires UV post-cure to reach optimal mechanical properties. Supports print resolutions: 100 and 50 microns.
Please note: only compatible with Form 4/4B
Dont't Forget an Extended Warranty!
在庫あり
- 新発売
弊社略歴
Bruleは、他社に先駆けて2012年から３Dプリンター販売を開始いたしました。その後も、市場評価の高い卓上型プリンタを厳選して、販売からサポートまで社内で手掛けているのが特徴です。経験豊かな技術者が社内に数多く在籍しております。
弊社概要
Bruleは、3Dプリンターのサプライヤーであり、産業用および、卓上型の3Dプリントそれぞれに精通しています。弊社は、最先端の次世代金属3Dプリンター、SLS、超高速産業用3Dプリンターも取り扱っております。
顧客満足
- 厳選されたセレクション
- 迅速な配送
商品概要
Formlabs Rigid 4000 Resin Cartridge 1L

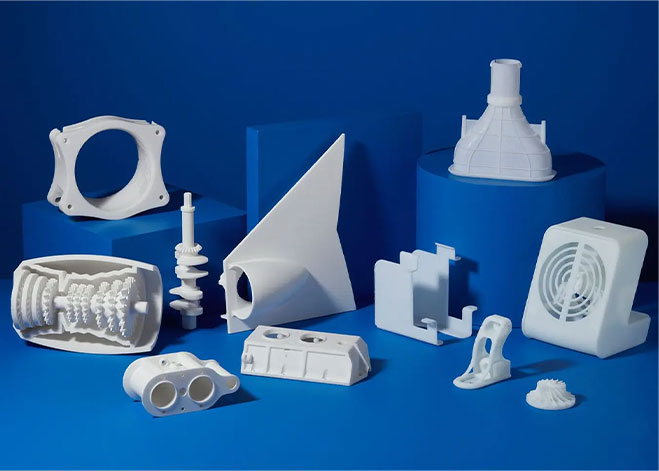

Rigid 4000 Resin is a glass-filled resin that is precise and offers similar stiffness to PEEK and PEKK thermoplastics. It prints with a smooth, matte, polished finish and is highly resistant to heat and chemicals.
Key Specifications
Choose Rigid 4000 Resin for stiff and strong engineering-grade prototypes, general load-bearing applications, and industrial parts that need to withstand significant load without bending.
Compatibility
Printer compatibility
Form 2, Form 3, Form 3+, Form 3B, Form 3B+, Form 3L, Form 3BL, Form 4, Form 4B
Compatible with these resin tanks
Form 2 LT Tank, Form 3/3B Resin Tank V2, Form 3/3B Resin Tank V2.1, Form 3L/3BL Resin Tank V1, Form 3L/3BL Resin Tank V2, Form 4 Resin Tank
Compatible with these build platforms
Form 4 Build Platform, Form 4 Build Platform Flex, Form 3 Build Platform, Form 3 Build Platform 2, Form 3 Stainless Steel Build Platform, Form 3L Build Platform, Form 3L Build Platform 2L
Why Choose Rigid 4000 Resin?
Rigid 4000 Resin is a glass-filled material that has the highest tensile strength in our Engineering Resin Library.
Stiff
Resistant to deformation under a variety of forces, pressures, and torques.
High Thermal and Chemical Resistance
Withstands high temperatures and a variety of chemicals.
Precise
Produce strong, detailed, and accurate molds or models.
Smooth, Matte Finish
Deliver parts that look and feel like a finished product.

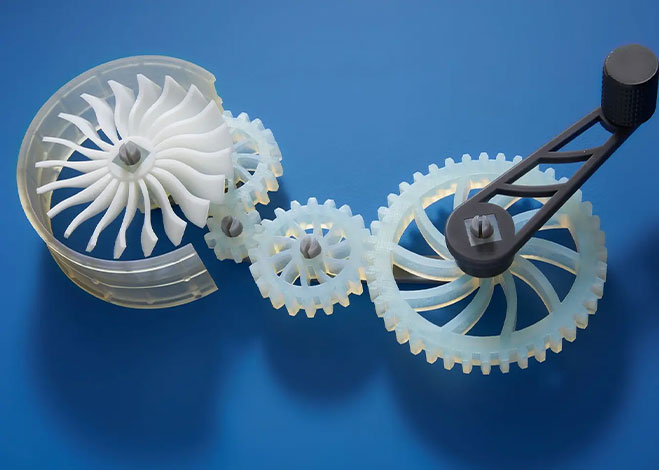

Applications
Produce stiff and strong engineering-grade prototypes that can be load-bearing.
Consider Rigid 4000 Resin for:
- Mounts and brackets
- Thin-walled parts
- Jigs and fixtures
- Simulates stiffness of PEEK
Material Properties*
Rigid 4000 Resin
Ultimate Tensile Strength
69 MPaTensile Modulus
4.1 GPaElongation
5.3%Flexural Modulus
3.4 GPaNotched Izod
23 J/mHeat Deflection Temp @ 0.45 MPa
77 ºCThermal Expansion (0-150 °C)
63 μm/m/°C* Material properties can vary with part geometry, print orientation, print settings, and temperature. Data was obtained from parts printed using Form 3, 100 μm, Rigid settings and post-cured with a Form Cure for 15 minutes at 80 °C.
Post-Processing
Form Wash Settings
DURATION
15 min in IPA
NOTES
Rigid 4000 Resin contains glass particles, which strengthens printed parts. Maintain separate wash buckets to prevent glass particles adhering to parts printed with other resins.
Form Cure Settings
DURATION
15 min
TEMPERATURE
80 °C
NOTES
For parts printed in an engineering-focused resin (such as those in the Rigid, Tough & Durable, and Flexible & Elastic families), post-curing ensures that the parts reach their optimal mechanical properties and can function as designed. There is only one recommended post-curing time for Rigid 4000 Resin V1.
