Shining 3D Einscan Libre
Product# EINSCAN-LIBRE
Key Features:
- Wireless and standalone configuration
- Complete on-device scan-to-mesh capabilities
- Marker-free laser scans with texture
- Powerful embedded computing by NVIDIA
Dont't Forget an Extended Warranty!
Usually ships in 1-2 weeks
- 新発売
- 保証込み
詳しい購入サポートや特別価格についてはお問い合わせください。Brule 3D プリンターのエキスパートが1営業日以内にご連絡いたします。
弊社略歴
Bruleは、他社に先駆けて2012年から３Dプリンター販売を開始いたしました。その後も、市場評価の高い卓上型プリンタを厳選して、販売からサポートまで社内で手掛けているのが特徴です。経験豊かな技術者が社内に数多く在籍しております。
弊社概要
Bruleは、3Dプリンターのサプライヤーであり、産業用および、卓上型の3Dプリントそれぞれに精通しています。弊社は、最先端の次世代金属3Dプリンター、SLS、超高速産業用3Dプリンターも取り扱っております。
顧客満足
- 厳選されたセレクション
- 迅速な配送
商品概要

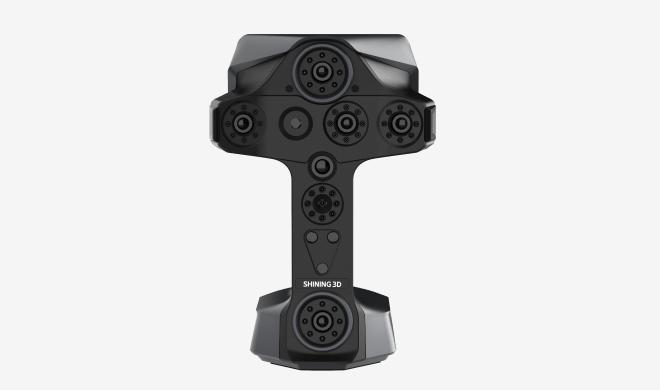

EinScan Libre
All-in-one laser 3D scanner: wireless, markerless, and full-color
Key Features
- Wireless and standalone
- Complete on-device scan-to-mesh
- Marker-free laser scans with texture
- Powerful embedded computing by NVIDIA
All In One Solution
The EinScan Libre delivers a fully wireless, standalone 3D scanning experience, powered by its built-in screen and NVIDIA processor. It offers the perfect balance of freedom and efficiency, ensuring reliable results with versatile, user-friendly operation.
Completely wireless
High-performance processor
Laser & infrared light
Complete on-device workflow
Multiple scan modes
Lifelike color reproduction

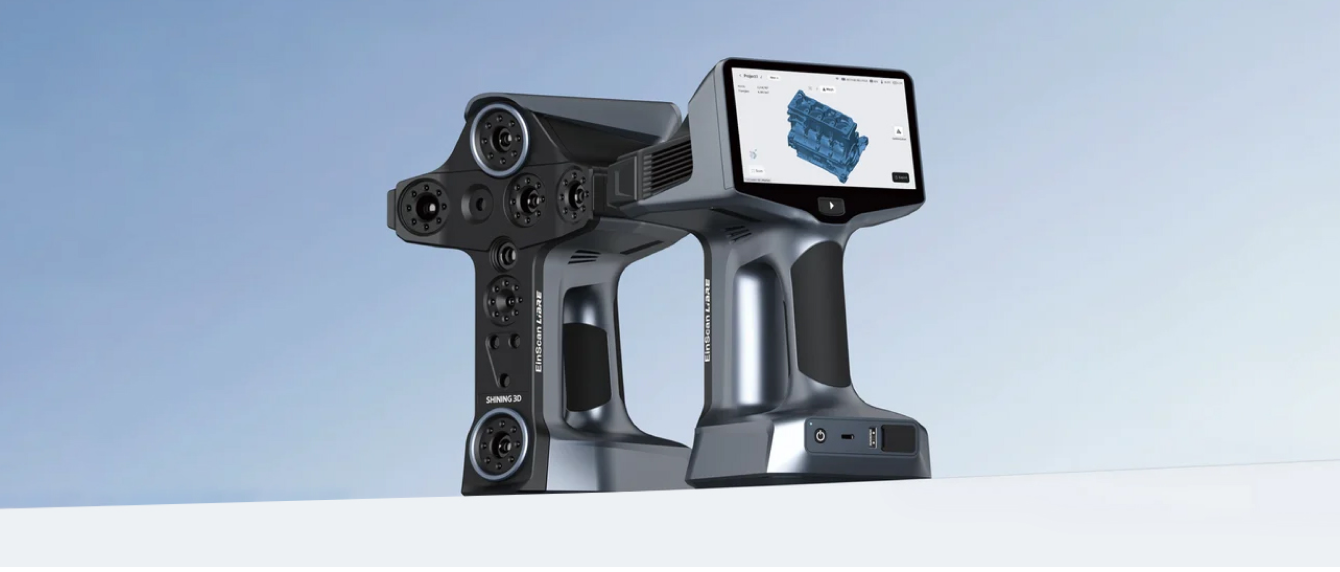

Cut the Cord, Go Wireless
- 5.5-inch OLED display: Capture, view, and manage your scans effortlessly with its user-friendly touchscreen UI.
- Embedded computing system: Scan and process independently, with all functions built into the device—no laptop required.
- Rechargeable batteries: No time for downtime? Just reload and keep scanning. Slide your batteries into the convenient charging dock and be ready to scan at all times.

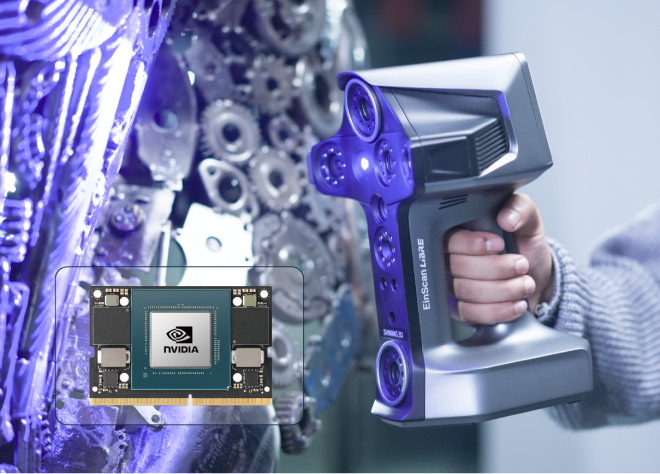

Brains Behind the Speed
高性能プロセッサと大容量ストレージを搭載しているため、処理速度を犠牲にすることがありません。そのため、フラストレーションなくワイヤレススキャンできます。
- 強力なNVIDIAプロセッサ: 統合されたJetson Orin NX 16GB、8コアCPU、1024 CUDAコアを備えたAMpere GPUにより高速なデータ処理を実現
- 1TB SSD: 自由に使用できる容量が大きいことはスキャンにとって重要です。拡張可能なストレージにより、高解像度モデルでも大規模オブジェクトでも、容量不足を心配することなくスキャンできます
All Modes On Deck
Switch between the EinScan Libre's three versatile scan modes to cover object sizes ranging from 0.1m to over 10m. These IR (infrared) and laser modes help the scanner adapt to all kinds of materials, whether you're indoors or outdoors in direct sunlight.
Laser HD Mode
Revolutionary 101 laser lines enable maker-free, high-detailed scanning with rich texture.
- Resolution up to 0.05 mm
- 101 blue laser lines
- Supports texture alignment
IR Rapid Mode
Ideal for larger areas, this mode offers marker-free and high-efficiency scanning with invisible, eye-safe infrared light. It’s less sensitive to ambient light, making it perfect for outdoor use.
- Working distance up to 1.5 m
- FOV of 983 x 979 mm
IR Adaptive Mode
Ideal for reflective and black surfaces, delivering reliable results.
- 38 IR laser lines
- Volumetric accuracy up to 0.04 + 0.06 mm/m

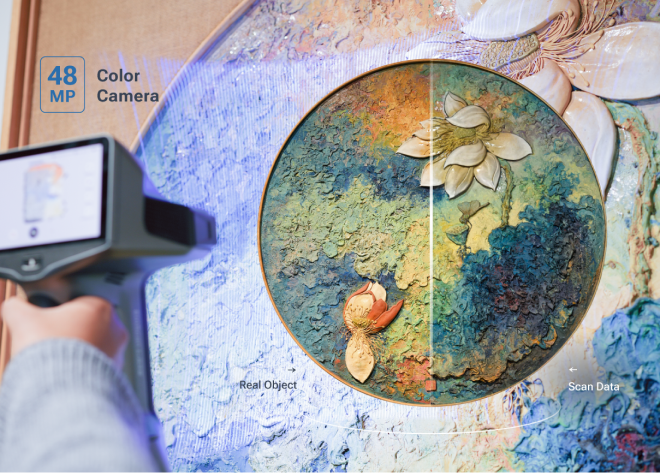

Lifelike Color Reproduction
Experience high-resolution color capture with the EinScan Libre. Equipped with a 48MP color camera, it delivers lifelike color fidelity, capturing every detail with clarity and vibrant colors. The EinScan Libre ensures your scans reflect the full richness of the scene or object you're scanning.
Where Wireless Meets Accuracy
Experience the perfect blend of freedom and accuracy with the EinScan Libre. This advanced wireless scanner delivers an impressive volumetric accuracy of up to 0.04 + 0.06 mm/m, ensuring that every detail is captured with pinpoint precision. Whether working on intricate designs or complex projects, the EinScan Libre provides the reliability and accuracy you need, all in a truly wireless device.

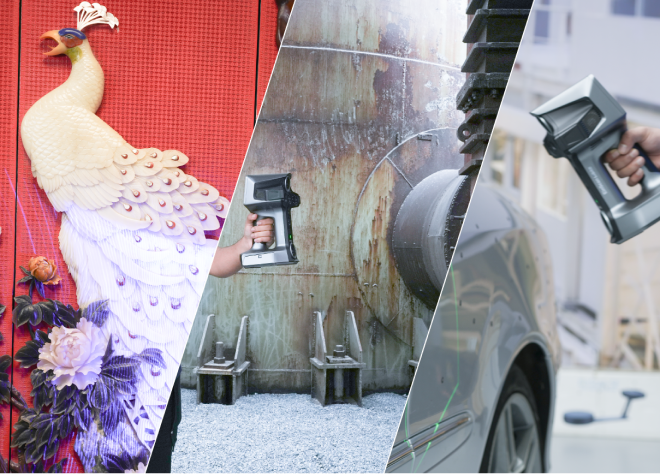

Multiple Applications
Discover how SHINING 3D scanners provide solutions for various industries.
Cultural Creation & Art Customization
Equipped with a 48MP texture camera, the EinScan Libre captures cultural heritage in stunning detail and vibrant color. The markerless laser HD mode delivers highly accurate digitization, preserving legacy artifacts with unmatched precision and true-to-life authenticity.
Engineering Machinery & Other Transportation
With rapid infrared light scanning, the EinScan Libre effortlessly captures large machinery without the need for markers. This versatile tool is perfect for professionals across industries—from construction to product design—empowering them to tackle diverse projects efficiently with one powerful device.

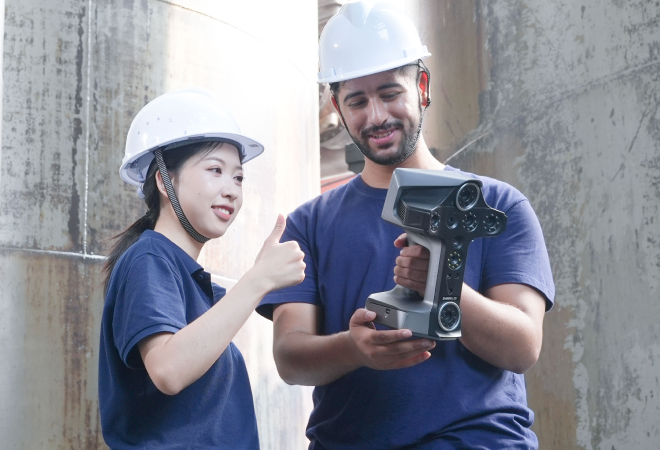

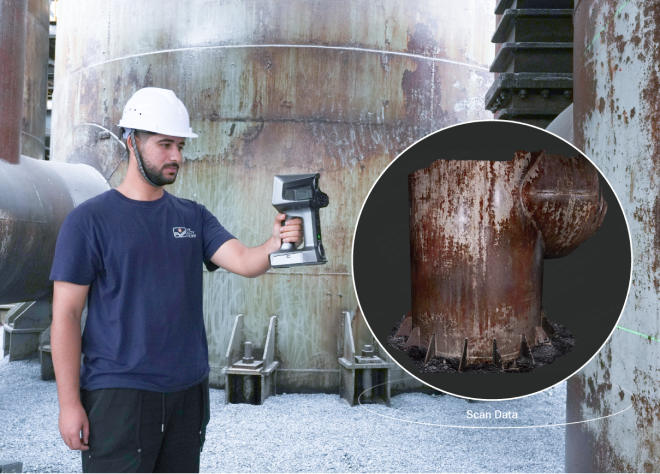

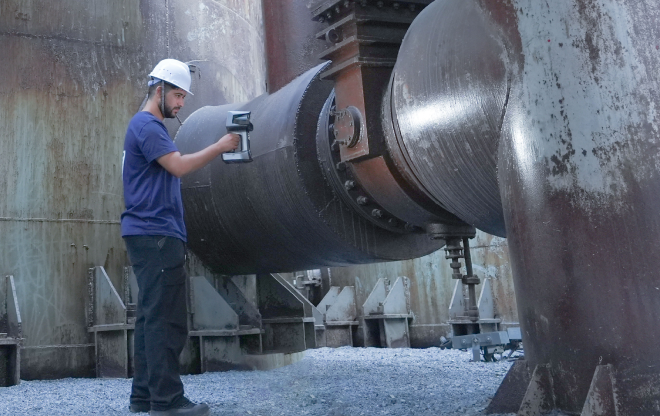

Energy & Heavy Industry & Public Utilities

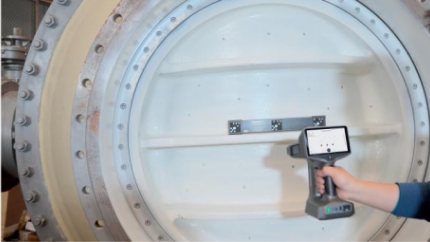

Free from cables and laptops, this versatile scanner lets you move seamlessly across different workspaces. Featuring a 5.5-inch touchscreen and rechargeable batteries, it makes scanning large parts easier than ever.

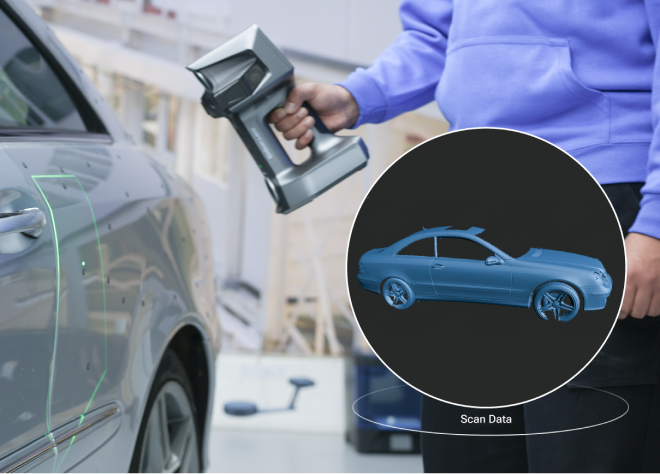

Automotive
The EinScan Libre is designed with exceptional adaptability, handling diverse surface types effortlessly, including challenging reflective and black surfaces. Its advanced Laser HD mode enhances convenience by enabling marker-free scanning, making it a versatile solution for complex materials and detailed scans.
Complete On-Device Workflow
メッシュデータ出力
ワンクリックでメッシュデータを簡単に生成し、プロセス全体を本体で完了します。幅広いアプリケーションに適した STL、OBJ、ASC、LAS 形式でエクスポートできます。

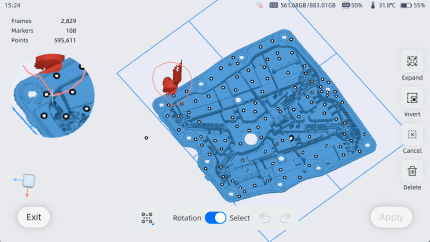

データ編集
スキャンデータをデバイス上で直接編集できます。

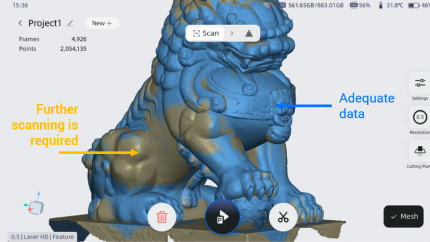

データ品質の表示
黄色部分はさらなるスキャンが必要であることを示して分かりやすくなっています。

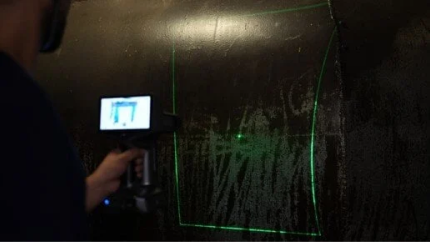

スキャンエリアの投影
スキャナはスキャンエリアを表す緑色の長方形を投影するのでどこをスキャンしているかすぐ分かります。
プロジェクト内で解像度調整
新規プロジェクト開始せずに解像度変更ができるため、中断することなくシームレスに表示、調整し、スキャンを続行できます。

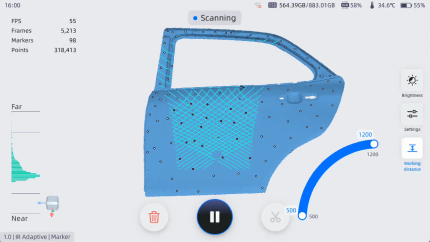

スキャン距離の範囲調整
データ収集距離の範囲変更をすることで背景を除外したり、データ量を調整できます。Change the data collection distance range to filter out the background or get maximum data amount.

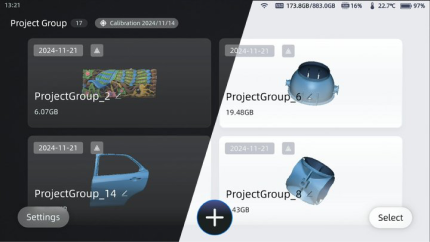

Light & Dark UI Adaptation
Offering both light and dark themes, ensure optimal visibility and comfort, enhancing your focus and productivity in any environment.

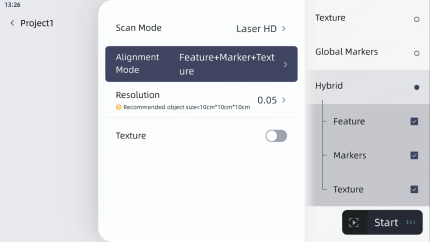

Flexible Hybrid Alignment Modes
Combine feature, texture, and marker alignment modes freely to create hybrid solutions for diverse scanning needs.
Precision Boost with Scale Bar
EinScan Libre's validated scale bar for calibration can also be integrated with photogrammetry technology to verify markers in real time, improving overall accuracy for large object scans.
Enhanced PC Integration
Multi-resolution fusion
Effortlessly combine scans with different resolutions across various modes for enhanced results.
Resource-efficient system
Delivers a smooth performance without the need for high-spec computers.
Flexible workflow
Multi-tasking workflows that offer enhanced flexibility, allowing you to go beyond single-threaded operations.
Measurement functions
Supports multiple coordinate alignment methods as well as distance, surface area, and volume calculations.
EinScan Libre Tech Specs
