Formlabs Elastic 50A v2 Resin - 1L
Product# RS-C2-ELCL-02
Formlabs' softest Engineering Resin, this 50A Shore durometer material is suitable for prototyping parts normally produced with silicone. Supports print resolutions: 100 microns. Post-curing required.
Please note: only compatible with Form 4/4B
Dont't Forget an Extended Warranty!
在庫あり
弊社略歴
Bruleは、他社に先駆けて2012年から３Dプリンター販売を開始いたしました。その後も、市場評価の高い卓上型プリンタを厳選して、販売からサポートまで社内で手掛けているのが特徴です。経験豊かな技術者が社内に数多く在籍しております。
弊社概要
Bruleは、3Dプリンターのサプライヤーであり、産業用および、卓上型の3Dプリントそれぞれに精通しています。弊社は、最先端の次世代金属3Dプリンター、SLS、超高速産業用3Dプリンターも取り扱っております。
顧客満足
- 厳選されたセレクション
- 迅速な配送
商品概要
Formlabs Elastic 50A Resin
Elastic 50A Resin V2 is a soft, translucent elastomer with a 50A Shore durometer that is ideal for prototyping parts normally produced with softer rubbers and silicones.
Key Specifications
Parts printed in Elastic 50A Resin will bend, stretch, compress, and hold up to repeated cycles without tearing, and spring back quickly to their original shape.
Compatibility
Printer compatibility
Form 4B
Compatible with these resin tanks
Form 4 Resin Tank
Compatible with these build platforms
Form 4 Build Platform and Form 4 Build Platform Flex
Why Choose Elastic 50A Resin V2?
Elastic 50A Resin V2 is an elastomeric material with high elongation and high energy return. Parts are highly elastic, yet strong enough not to tear during printing.
Fast Springback
Bend, stretch, and compress parts that resume their normal shape afterwards.
Transparent
Create objects that are clear, providing visibility into the model.
Durable
Able to withstand rugged use for multiple cycles.
Pliable
Produce parts that look and feel like a molded silicone part.

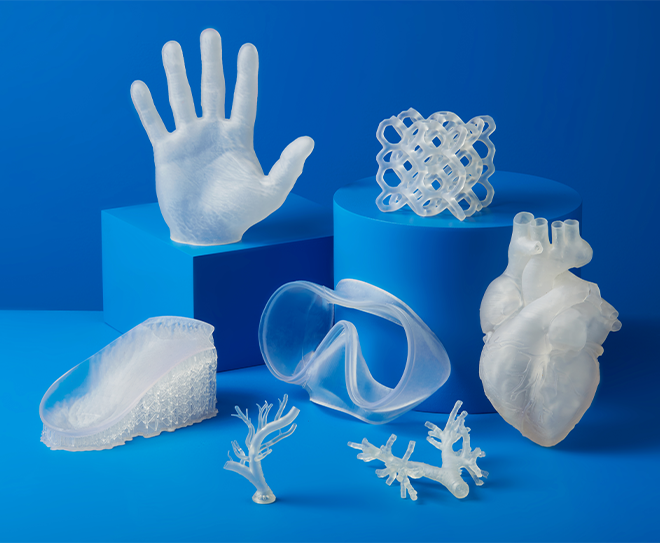

Applications
Elastic 50A Resin V2 is ideal for developing soft, flexible prototypes normally produced with silicone.
Consider Elastic 50A Resin V2 for:
- Wearables, such as straps
- Compressible buttons
- tretchable enclosures and casings
- Compliant features for robotics
- Soft tissue anatomy and medical models
- Special effects props and models
Material Properties*
Elastic 50A Resin V2
Ultimate Tensile Strength
3.4 MPaStress at 50% Elongation
0.9 MPaStress at 100% Elongation
1.7 MPaElongation
160%Tear Strength
12.3 kN/mHardness Shore A
55A* Material properties may vary based on part geometry, print orientation, print settings, and temperature. Data was obtained from parts printed on a Form 2 printer with 100 µm Elastic settings, washed in a Form Wash for 20 minutes, and post-cured at 60°C for 20 minutes in a Form Cure.
Form Wash Settings
DURATION
20 min + 10 min
NOTES
Wash Elastic 50A Resin V2 for 10 minutes on the build platform. Remove parts from the build platform, then wash for 10 more minutes using fresh solvent. Avoid washing Elastic 50A Resin V2 for longer than 20 minutes, as this may degrade parts.
Form Cure Settings
DURATION
30 min
TEMPERATURE
70 °C
NOTES
There is only one recommended post-curing time for Elastic 50A Resin V2. Fully submerge the dry parts in water in a glass beaker placed inside Form Cure.
