Bambu H2S Laser Combo
Product# PF003-L+SA007-+SL001-JP
Key Features:
- Single-nozzle Multi-material 3D Printing
- 340*320*340 mm³ Print Volume

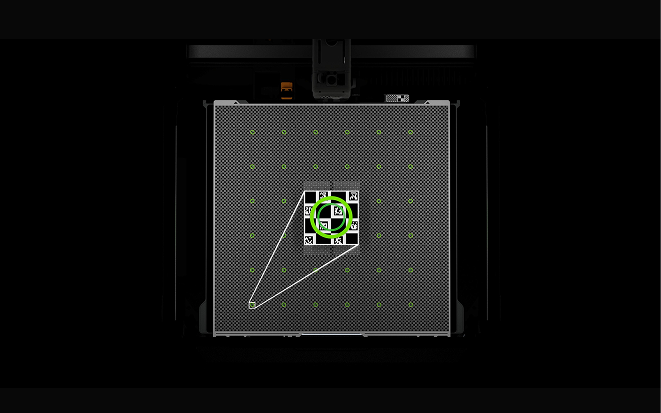

- 5μm Resolution Optical Motion Calibration
- Closed-loop Servo Extruder
- 350°C Nozzle & 65°C Active Chamber Heating
- 10W laser and cutting module
※こちらの製品は現在日本での販売を開始しておりません。見積り依頼フォームからご連絡をご登録いただけれれば製品の販売を開始したタイミングでEメールにてご連絡させていただきます。
Dont't Forget an Extended Warranty!
利用可能
- 新発売
- 保証込み
弊社略歴
Bruleは、他社に先駆けて2012年から３Dプリンター販売を開始いたしました。その後も、市場評価の高い卓上型プリンタを厳選して、販売からサポートまで社内で手掛けているのが特徴です。経験豊かな技術者が社内に数多く在籍しております。
弊社概要
Bruleは、3Dプリンターのサプライヤーであり、産業用および、卓上型の3Dプリントそれぞれに精通しています。弊社は、最先端の次世代金属3Dプリンター、SLS、超高速産業用3Dプリンターも取り扱っております。
顧客満足
- 厳選されたセレクション
- 迅速な配送
商品概要
Bambu Lab H2S Laser Combo
A Personal Manufacturing Hub
The H2S delivers the same blazing speeds, expansive build volume, and enterprise-grade reliability as the H2D—streamlined into a single-nozzle design. Perfect for teams that don’t require dual extrusion but still demand top-tier performance.
The Power of H2D, Streamlined for Single Nozzle Printing
The Bambu Lab H2S combines blazing print speeds, industrial reliability, and enterprise-grade intelligence in one versatile system. Engineered for organizations that don’t require dual extrusion, the H2S is a go-to solution for 3D printing, digital cutting, and laser engraving—all in one machine.
Key Features
- Large Build Volume: 340 × 320 × 340 mm — 120% larger than the X1 Carbon
- Blazing Fast Speeds: Up to 1000 mm/s with precise extrusion control (20 kHz)
- High-Temp Printing: 350 °C all-metal hotend, 65 °C heated chamber
- AI Print Protection: 23 sensors and 3 cameras prevent failures & wasted material
- Industrial Reliability: Rigid CoreXY architecture with Bambu Lab engineering

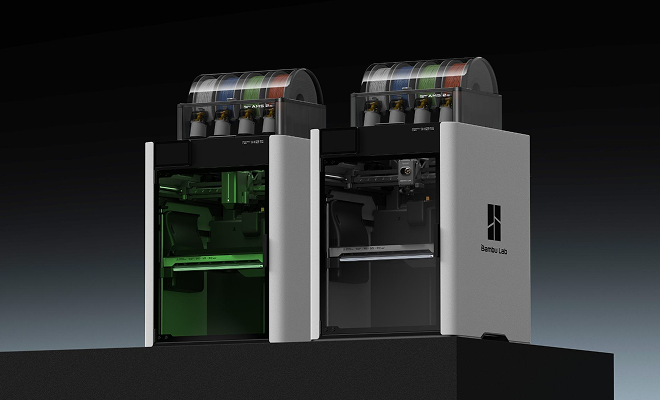

- Flexible Configurations: Expand with AMS (multi-material) or Laser Module
Unmatched Precision
Ready for Engineering-Grade Filaments

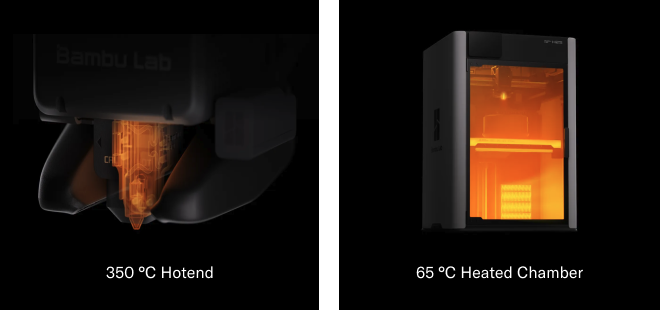

- 350 °C hotend + 65 °C actively heated chamber
- Optimized for PLA, PETG, PC, PPA, and more
- Closed-loop thermal control reduces warping and improves adhesion
- Build large, high-strength parts with functional performance
Surface & Speed Excellence
Precision Extrusion
Servo motor + eddy current sensors improve smoothness & edges

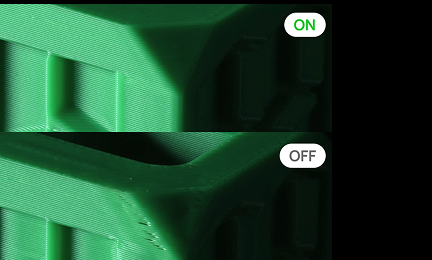

Active Vibration Compensation
Neutralizes resonance for premium results at high speed
PMSM Servo System
67% more extrusion force with up to 20,000 checks per second
AI Protection & Safety

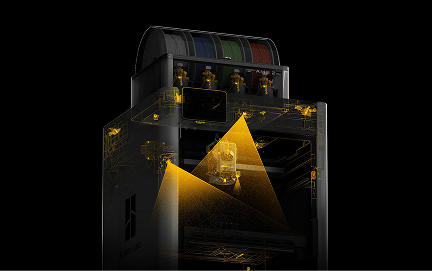

Vision System
Detects clumping, spaghetti, purge jams in real-time
23 Sensors + 3 Cameras
Continuous monitoring of feeding, thermal, and safety systems
Pre-Flight Checklist
Automatic integrity scans before every print

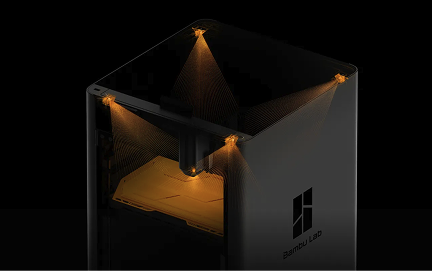

Safety First
Flame sensors, enclosure monitoring, E-stop button

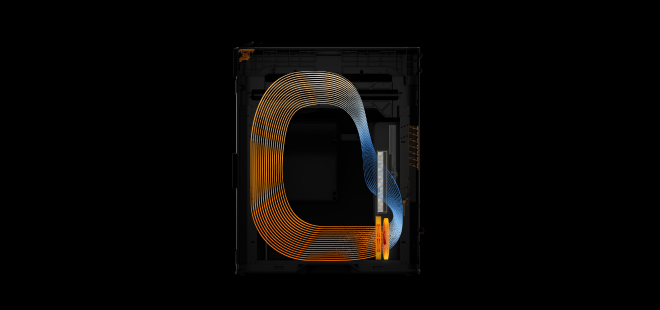

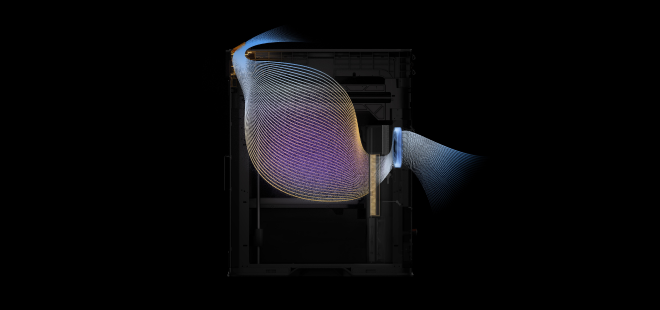

Airflow & Filtration
High-Temp Mode
Sealed chamber for stable engineering prints
Low-Temp Mode
Ventilated & filtered air for PLA/PETG
Maximum Productivity

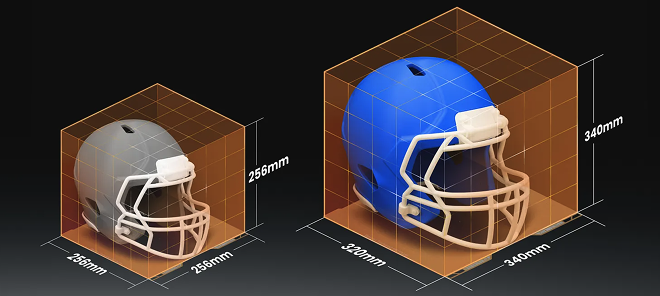

340×320×340 mm build volume
Larger than any other Bambu Lab printer
Up to 1000 mm/s speed + 20,000 mm/s² acceleration
Print full-scale parts faster and with fewer splits
Safety & Connectivity

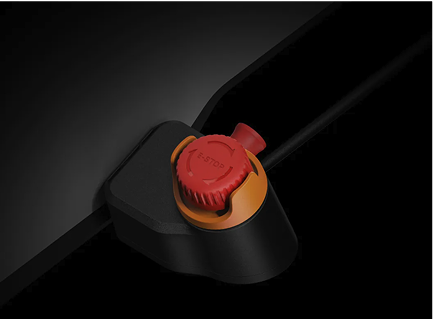

Emergency Stop for instant control

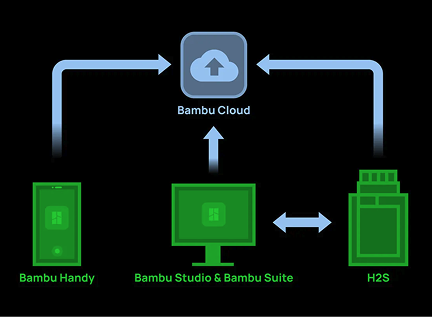

Cloud or Offline Operation
Developer Mode
User-Centric Design
Quick-swap nozzles, no tools required

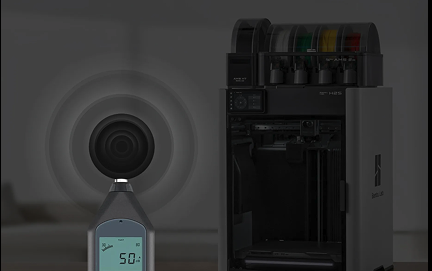

Quiet operation (<50 dB with noise canceling)

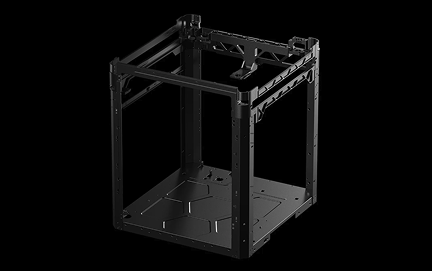

All-metal die-cast chassis for rigidity and stability
What’s In The Box
| H2S AMS Combo | H2S Laser Full Combo | H2S | |
|---|---|---|---|
Bambu Lab H2S
|
 |
|
|
Bambu Lab H2D Laser Edition |
|
||
 Textured PEI Build Plate |
|
|
|
 Spool Holder |
|
|
|
 Accessory Box |
|
|
|
 AMS 2 Pro |
|
|
|
 10W Laser Module |
|
||
 Cutting Module (with Pen Holder) |
|
||
 Laser Platform |
|
||
 Cutting Platform |
|
||
 Safety Key |
|
|
|
 Ventilation Pipe |
|
||
 Laser & Cutting Material |
|
||
 Emergency Stop Button |
|
Technical Specifications
Frequently Asked Questions
- 1. Does the H2S support laser and cutting functions?
It supports 10W laser and cutting but does not support 40W laser.
- 2. Can a non-laser H2S be upgraded to a laser H2S?
Yes. The upgrade kit and its installation guide will be available some time after the product launch. Note that the upgrade kit uses an external air pump, which differs in installation structure from the built-in air pump. It must be installed externally and connected to the machine via an air tube. The upgraded printer has the same functionality and processing performance as the laser version.
- 3. Can the H2S be upgraded to an H2D?
No, it is recommended to choose the model that suits your needs when placing an order.
- 4. Is the H2S compatible with the first-generation AMS or AMS lite?
The first-generation AMS is fully plug-and-play compatible with the H2S for multi-color printing but does not support AMS drying. Due to fundamental differences in the feeding mechanism and buffer structure, the H2S does not support AMS lite.
- 5. How many AMS 2 Pro and AMS HT units can the H2S support, and how many colors can it print?
The H2S supports up to 4 AMS 2 Pro and 8 AMS HT units, totaling 12 units with 24 filament slots, enabling up to 24-color printing.
- 6. Are the hotend and silicone sock of the H2S compatible with the H2D or A1?
The H2S hotend and silicone sock are compatible with the H2D. While structurally similar to the A1 hotend, they are not fully compatible. For optimal print quality, we strongly recommend not using the A1 hotend on H2 series printers. Using an H2 series hotend on an A1 printer is feasible, but it requires the H2 series silicone sock.
- 7. Are the H2S and A1 series tool heads the same? Can the components on the tool head be shared?
The H2S tool head features a completely new design, with optimized and upgraded components, including the extruder motor, filament drive wheel, hotend heating assembly, and cooling fan. As a result, the components on the H2S tool head are not compatible with the A1 series, except for the cutter blade.
- 8. Are the build plates of the H2S and H2D compatible?
Yes, they are compatible.
- 9. Does the H2S support motion accuracy calibration, and is the calibration plate from my previously purchased H2D compatible?
It supports motion accuracy calibration, and the H2D calibration plate is compatible.
- 10. The AMS 2 Pro connects to the printer via a 6-pin interface. What are the two remaining 4-pin interfaces on the back of the H2S printer used for?
The two 4-pin ports on the back are reserved for future expansion accessories. For example, to upgrade a non-laser version of the printer to a laser version, one of these ports can be used to connect an external air pump.
- 11. Does the H2S come with a standard USB drive, and what functions are affected without one? What are the USB drive specifications?
The package does not include a standard USB flash drive. You can still initiate printing normally without a USB, as the printer has built-in storage space to run print files. However, without a USB inserted, the following functions will be affected:
1. The recording and time-lapse photography functions can't be turned on;
2. Printing cannot be initiated through the LAN;
3. Print files cannot be sent to the machine for storage through the Bambu Studio;
4. Log files cannot be exported;
USB requirements: USB2.0 protocol or above (actual minimum write speed needs to be greater than 10MB/s), supported file formats are FAT32 and exFAT. and the printer only supports mounting one USB, and cannot connect multiple USB via a USB hub. - 12. What precautions or recommendations are there for printing TPU with the H2S?
Due to TPU’s flexible nature, which can cause issues during feeding and printing, we’ve created a dedicated wiki guide for TPU printing. Following the guide ensures smooth TPU printing.
- 13. What precautions should be taken when using the laser function?
Laser processing involves high-energy beams that may interact with flammable materials. Never leave the machine unattended during laser operation, ensure no flammable or explosive items are nearby, and refer to the Laser Safety Document for detailed safety guidelines.
